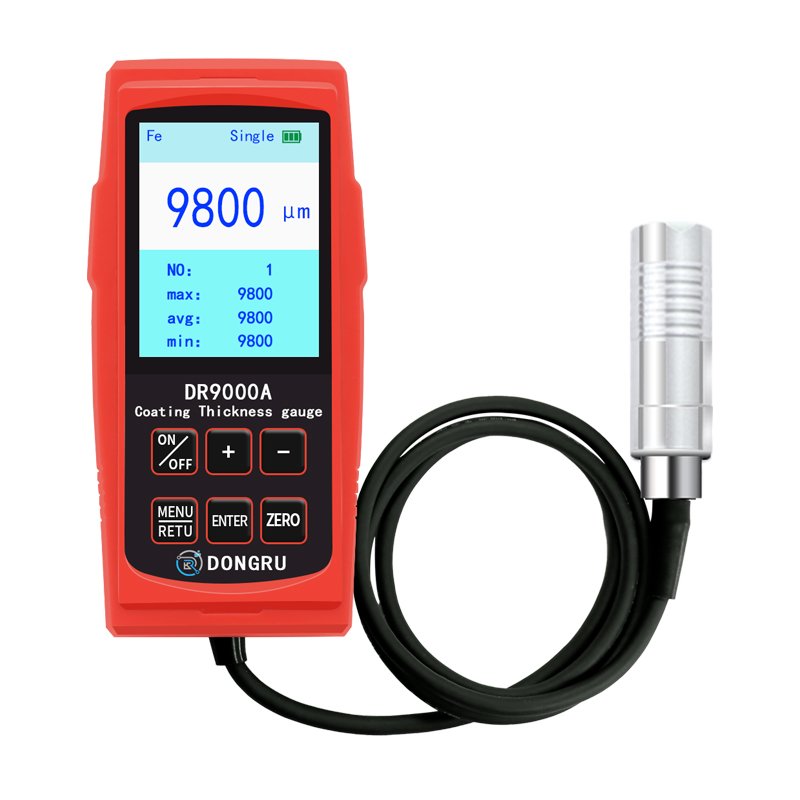

DONGRU DR9000A Fire-Resistant Coating Thickness Gauge

Name: DONGRU DR9000A Fire-Resistant Coating Thickness Gauge
Brand: DONGRU
SKU: DR-CT-DR9000A

For thicker fire-protection and heavy-duty protective coatings on suitable metal structures.

Capabilities / DR9000A

What the product record supports.

Four confirmed points: material, measurement, readout and power. Full values are in the specification table below.

Ferrous metal

magnetic · 0-10000μm · ±3%H+2μm

0.1μm/1μm/0.01mm · 2.8-inch color display

3.7V lithium battery（2000mAH） · 141×69×27mm / 242g

In practice

Read thick fire-protective and heavy-duty coatings up to 10 mm on steel, with a Φ20.5 mm spot that still fits formed sections and curved members.

0–10000 μm

Measure intumescent and heavy-duty protective systems on steel up to 10 mm in a single reading.

Ferrous steel only — not for aluminium or other non-ferrous substrates.

Φ20.5 mm minimum area

A Φ20.5 mm contact area and 0.5 mm minimum substrate keep thick-coating checks practical on formed sections.

At curved parts the radius must be at least 10 mm convex or 50 mm concave.

3.7 V 2000 mAh

10000

μm · measuring range

Reading, group number and max / avg / min show on the 2.8-inch colour screen; the 2000 mAh cell recharges on site.

Stated accuracy is ±3% of H + 2 μm.

Magnetic induction · 0–10000 μm · 2.8-inch colour LCDDR9000A · Fire-resistant coating thickness gauge

Where it stopsFerrous metal substrates only. Not for non-ferrous metals, and not for coatings on plastic or concrete.

Model / DR9000A

Values come from one shared product record; confirm suitability for your measurement task.

0-10000μm

Measuring range

Confirm your material, measuring method and application before selecting an instrument.

DR9000A

Tell us your material, expected range and site conditions. We can help check the instrument and probe fit.
