Compatible substrates
Phone camera glass / IR ink
DONGRU DR82C Lens Transmittance Tester
Light Transmission Meters
DR82C

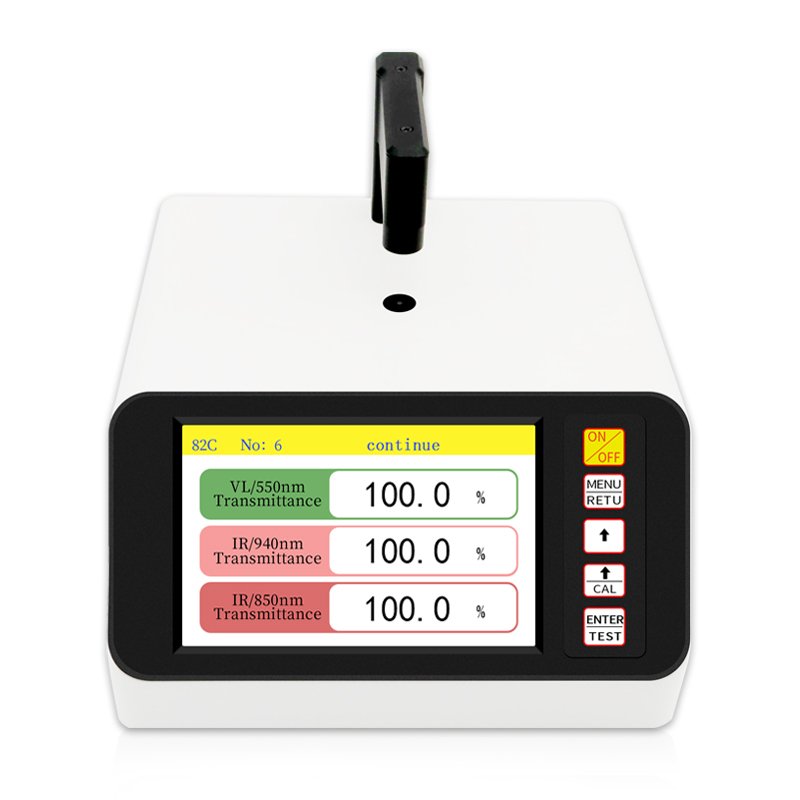

DONGRU DR82C Lens Transmittance Tester
For optical-transmission checks on lens and small-aperture samples.
Request technical guidanceCapabilities / DR82C
What the product record supports.
Four confirmed points: material, measurement, readout and power. Full values are in the specification table below.
Measurement
optical (three-in-one path) · 0-100% · ±2%
Readout
0.1% · 5-inch color screen
Power & body
DC-5V · 200×200×167mm / approx. 1900g
Model / DR82C
Technical specifications
Values come from one shared product record; confirm suitability for your measurement task.
0-100%
Measuring range
Confirm your material, measuring method and application before selecting an instrument.
Measurement
- Measurement method
- optical (three-in-one path)
- Measuring range
- 0-100%
- Compatible substrates
- Phone camera glass / IR ink
- Accuracy
- ±2%
- Resolution
- 0.1%
- Minimum measurement area
- 1mm
- Probe / optics
- 550nm, 940nm, 850nm
Instrument & environment
- Model
- DR82C
- Product code
- DR-LT-DR82C
- Display
- 5-inch color screen
- Power supply
- DC-5V
- Dimensions / weight
- 200×200×167mm / approx. 1900g
- Operating environment
- 0℃-50℃, 20%-90%RH
Product family / DR82C
Where it fits
Camera-lens and IR-ink aperture inspection.
Compatible substratesPhone camera glass / IR ink
Confirm your material, measuring method and application before selecting an instrument.
DR82C
Discuss this model
Tell us your material, expected range and site conditions. We can help check the instrument and probe fit.
