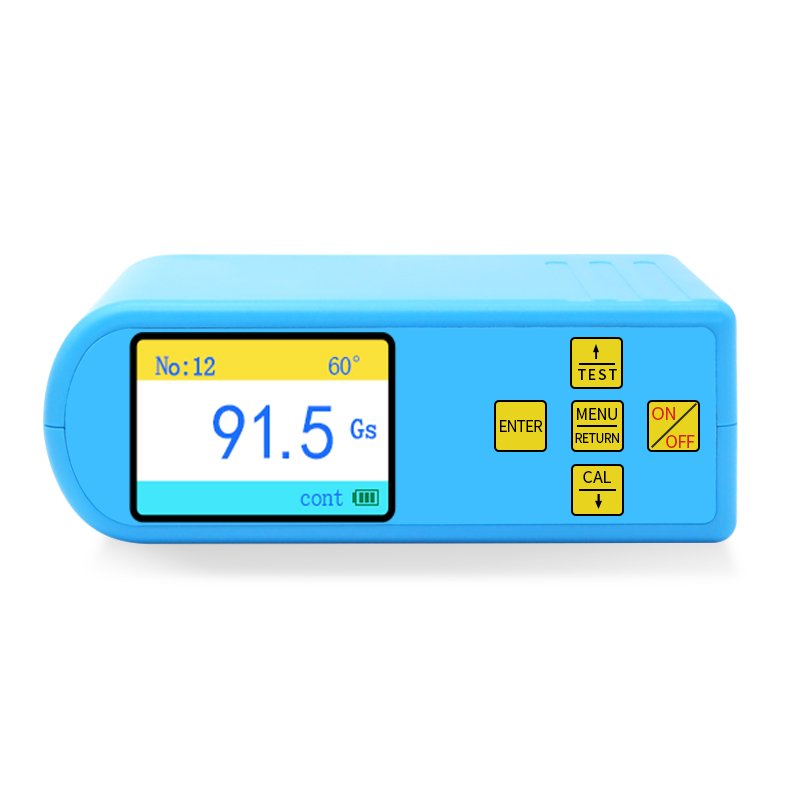

Image text
- Gloss meter: surface gloss measuring instrument.
- TEST: measurement; MENU / RETU: menu / return; CAL: calibration; ENTER: confirm.
- Single: single reading; Cont.: continuous measurement; No.: reading number.
Device labels and sample screen readings are reproduced from the original photograph.
Gloss Meters
DR61S
DONGRU DR61S Gloss Meter
For repeatable gloss checks on suitable finished surfaces.
Request technical guidanceProduct family / DR61S
Where it fits
Paint, plastic, stone and paper surface-finish inspection.
Confirm your material, measuring method and application before selecting an instrument.
Model / DR61S
Technical specifications
Values come from one shared product record; confirm suitability for your measurement task.
| Product code | DR-GM-DR61S |
|---|---|
| Measurement method | 60° incident angle |
| Measuring range | 0-200Gs |
| Accuracy | indication error±(0.3+1%) / stability±0.2 |
| Resolution | 0.1 |
| Probe / optics | 28×14mm |
| Power supply | 3.7 V lithium battery (3000 mAh) |
| Dimensions / weight | 144 × 55 × 76 mm / 400 g (including battery) |
| Operating environment | 0-40℃, <85% |
DR61S
Discuss this model
Tell us your material, expected range and site conditions. We can help check the instrument and probe fit.
