Compatible substrates
Steel / aluminum with compatible coatings
DR5000S · silver screen frame
Fe / NFe
DR5000S

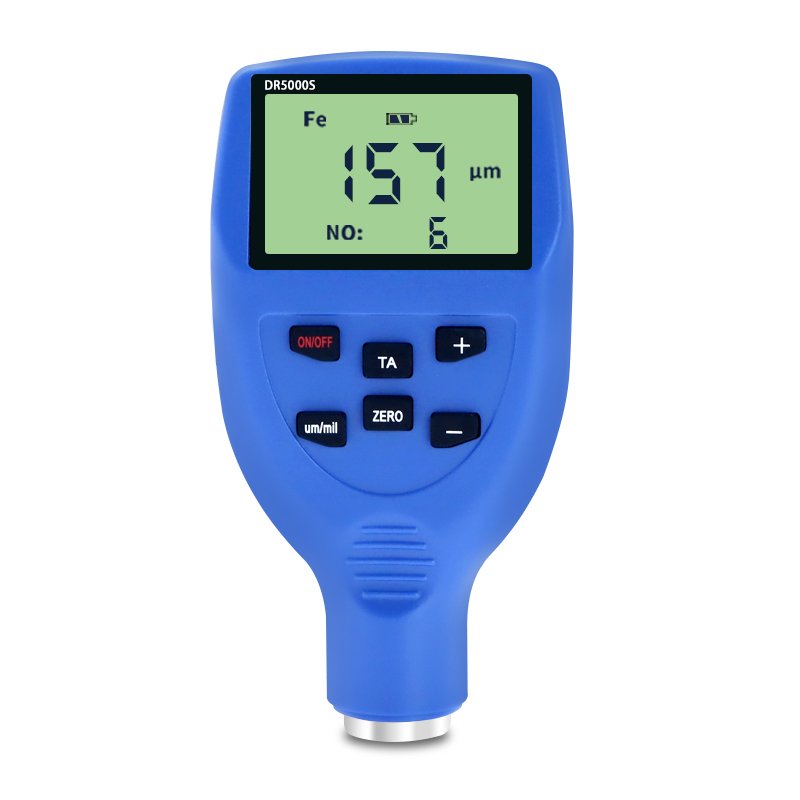

DONGRU DR5000S Fe/NFe Coating Thickness Gauge
Automatic Fe/NFe measurement: Fe 0–5000 μm and NFe 0–3000 μm. Store 2000 readings in 10 groups. Supplied with 3 AAA batteries.
Discuss this model ↗Fe / NFe two-in-one capability
Measurement
Measurement method: Magnetic induction / eddy current; automatic Fe/NFe recognition
Ferrous range (Fe): 0–5000 μm (≈196.9 mil)
Nonferrous range (NFe): 0–3000 μm (≈118.1 mil)
Accuracy: ±(3%H + 2 μm)
Readout & records
Display resolution: 0.1 mil / 0.1 μm / 1 μm
Units: μm / mil
Reading memory: 2000 readings; 10 groups × 200
On-device statistics: Minimum / maximum / average
Power & body
Power supply: 3 × AAA dry batteries included
In practice
Where the DR5000S is used
Automatic Fe/NFe switching with the widest ferrous range in the line: 0–5000 μm on steel and 0–3000 μm on aluminium. Batteries are supplied, and 2000 readings stay in ten groups on the instrument.
01
Fe and NFe, automatic
Auto-switching
The gauge recognises ferrous and non-ferrous substrates and switches range; Fe reads 0–5000 μm, NFe 0–3000 μm.
On aluminium, only suitable non-conductive coatings apply.
02
5000 μm on steel
Fe range 0–5000 μm
The widest ferrous range in the line reads thick protective builds on steel in one pass, with a 0.4 mm minimum substrate.
Stated accuracy is ±(3% of H + 2 μm).
03
Records, batteries included
2000 readings · 3 × AAA
5000
μm · Fe measuring range
2000 readings in ten groups stay on the instrument, and three AAA cells come in the box; an 18 × 15 mm spot fits most surfaces.
Minimum substrate thickness 0.4 mm; readings are stored on the device, with no PC export claimed.
Automatic Fe/NFe · Fe 0–5000 μm · 2000 readings in 10 groupsDR5000S · Fe/NFe coating thickness gauge
Where it stopsFerrous steel and suitable non-conductive coatings on aluminium only. Not for metal wall thickness. On aluminium, conductive coatings fall outside the eddy-current principle.
DR5000S
Technical specifications
H is the measured thickness. 1 mil = 25.4 μm; converted range limits are approximate.
0–5000 μm
Ferrous range (Fe) · Nonferrous range (NFe): 0–3000 μm
Confirm your material, measuring method and application before selecting an instrument.
Measurement
- Ferrous range (Fe)
- 0–5000 μm (≈196.9 mil)
- Nonferrous range (NFe)
- 0–3000 μm (≈118.1 mil)
- Measurement method
- Magnetic induction / eddy current; automatic Fe/NFe recognition
- Compatible substrates
- Steel / aluminum with compatible coatings
- Accuracy
- ±(3%H + 2 μm)
- Display resolution
- 0.1 mil / 0.1 μm / 1 μm
- Minimum substrate thickness
- 0.4 mm
- Minimum measuring area
- 18 × 15 mm
Instrument & environment
- Model
- DR5000S
- Measurement modes
- Single / continuous
- Reading memory
- 2000 readings; 10 groups × 200
- On-device statistics
- Minimum / maximum / average
- Calibration
- Zero / two-point calibration
- Power supply
- 3 × AAA dry batteries included
- Units
- μm / mil
DR5000S
Included kit
- Power supply3 × AAA dry batteries included
- Supplied documentsFactory test report, English manual and product quality certificate
- Calibration foils / reference bases6 calibration foils; 1 Fe base; 1 NFe base
- Other included accessoriesCarrying case and reference-base storage box; 1 each
Operation and settings are described in the supplied English manual.
DR5000S
Discuss this model
Tell us your material, expected range and site conditions. We can help check the instrument and probe fit.
