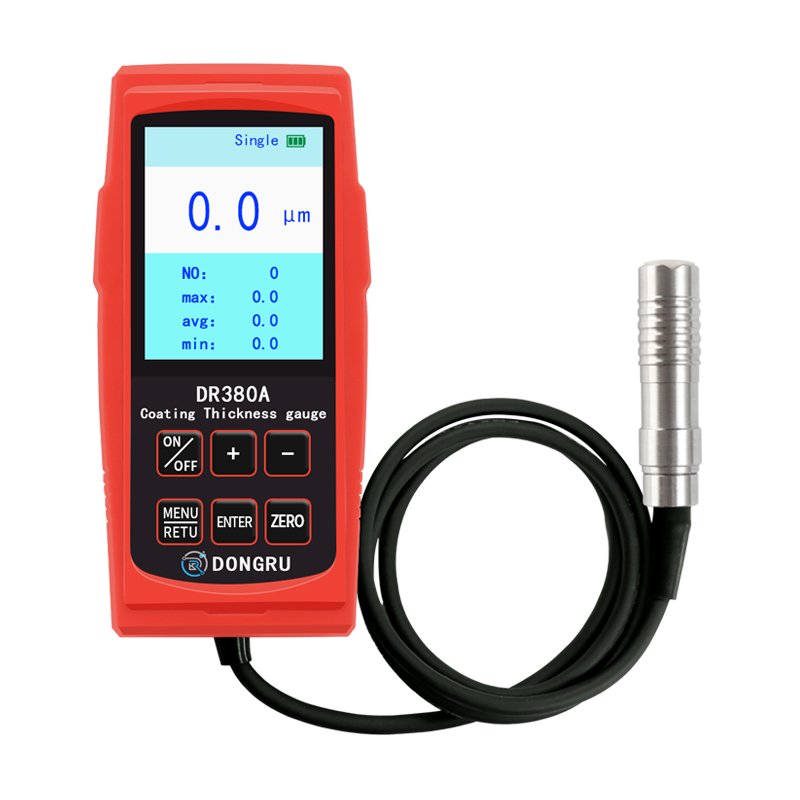

DONGRU DR380A Dual-Mode Coating Thickness Gauge
Coating Thickness Gauges
DR380A
DONGRU DR380A Dual-Mode Coating Thickness Gauge
For general coating measurements on compatible ferrous and non-ferrous metal parts.
Request technical guidanceCapabilities / DR380A
What the product record supports.
Four confirmed points: material, measurement, readout and power. Full values are in the specification table below.
Measurement
magnetic + eddy current · 0-2000μm · ±(1%-3%)H+1.5μm
Readout
0.1μm/1μm/0.01mm · 2.8-inch color display
Power & body
3.7 V lithium battery (3000 mAh) · 141×69×27mm / 242g
In practice
Where the DR380A is used
Cover thick and thin coating builds on steel and aluminium with one gauge. Automatic Fe/NFe switching handles mixed-material inspection, and the 2000 μm range keeps headroom for heavy coatings.
01
Steel and aluminium, automatic
Fe/NFe switching
Magnetic induction for steel, eddy current for aluminium. The gauge selects the method, so a mixed-material line needs one instrument, not two.
Metal substrates only — not for coatings on plastic, wood or concrete.
02
Headroom for heavy builds
0–2000 μm
2000 μm of range covers primer through thick protective systems, with a 0.3 mm minimum substrate thickness.
Stated accuracy is ±(1%–3%)H + 1.5 μm.
03
All-shift power
3.7 V 3000 mAh
2000
μm · measuring range
The 3000 mAh cell and 2.8-inch colour screen suit full-shift line inspection; a Φ16 mm minimum area fits most formed parts.
At curved parts the radius must be at least 5 mm convex or 25 mm concave.
Automatic Fe/NFe · 0–2000 μm · 2.8-inch colour LCDDR380A · Dual-mode coating thickness gauge
Where it stopsFerrous and non-ferrous metal substrates only. Not for coatings on plastic, concrete or wood, and not for metal wall thickness.
Model / DR380A
Technical specifications
Values come from one shared product record; confirm suitability for your measurement task.
0-2000μm
Measuring range
Confirm your material, measuring method and application before selecting an instrument.
Measurement
- Measurement method
- magnetic + eddy current
- Measuring range
- 0-2000μm
- Compatible substrates
- Steel / non-ferrous metal
- Accuracy
- ±(1%-3%)H+1.5μm
- Resolution
- 0.1μm/1μm/0.01mm
- Minimum substrate thickness
- 0.3mm
- Minimum measurement area
- Φ16mm
- Minimum curvature
- convex 5mm;concave 25mm
Instrument & environment
- Model
- DR380A
- Product code
- DR-CT-DR380A
- Display
- 2.8-inch color display
- Power supply
- 3.7 V lithium battery (3000 mAh)
- Dimensions / weight
- 141×69×27mm / 242g
- Operating environment
- 0℃-60℃, 20%-90%RH
