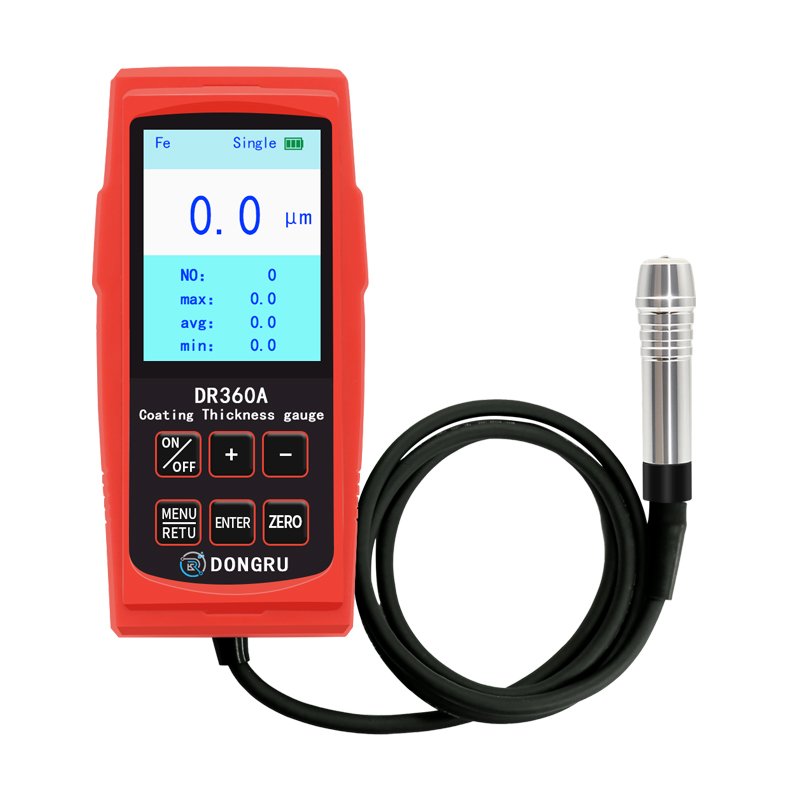

DONGRU DR360A Galvanized Coating Thickness Gauge
Coating Thickness Gauges
DR360A
DONGRU DR360A Galvanized Coating Thickness Gauge
For thickness checks on galvanized coatings over suitable ferrous metal substrates.
Request technical guidanceCapabilities / DR360A
What the product record supports.
Four confirmed points: material, measurement, readout and power. Full values are in the specification table below.
Measurement
magnetic · 0-2000μm · ±(1%-3%)H+1.5μm
Readout
0.1μm/1μm/0.01mm · 2.8-inch color display
Power & body
3.7 V lithium battery (3000 mAh) · 141×69×27mm / 242g
In practice
Where the DR360A is used
Check galvanized and zinc coatings on ferrous steel, then convert the thickness reading into coating mass for the job record. The magnetic probe covers 0–2000 μm with a Φ11.5 mm minimum area.
01
Galvanized and zinc coatings
Magnetic induction
Measure zinc and galvanized coatings on steel parts, from thin passivation layers through to a 2000 μm range.
Ferrous substrates only — not for aluminium or other non-ferrous metals.
02
Thickness into coating mass
g/m² for the job record
Readings convert to coating mass per unit area, so an inspection can be recorded in the units your specification uses.
Coating mass is derived from measured thickness; confirm the conversion basis in the project specification.
03
Small parts, long shifts
3.7 V 3000 mAh
2000
μm · measuring range
A Φ11.5 mm minimum measurement area suits small stamped parts, and the 3000 mAh cell covers a working shift on one charge.
Minimum substrate thickness 0.3 mm; at curved parts the radius must be at least 5 mm convex or 25 mm concave.
Magnetic induction · 0–2000 μm · 2.8-inch colour LCDDR360A · Galvanized coating thickness gauge
Where it stopsFerrous metal substrates only. Not for non-ferrous metals, and not for coatings on plastic or concrete. Coating mass is a conversion from measured thickness, not a direct reading.
Model / DR360A
Technical specifications
Values come from one shared product record; confirm suitability for your measurement task.
0-2000μm
Measuring range
Confirm your material, measuring method and application before selecting an instrument.
Measurement
- Measurement method
- magnetic
- Measuring range
- 0-2000μm
- Compatible substrates
- Ferrous metal
- Accuracy
- ±(1%-3%)H+1.5μm
- Resolution
- 0.1μm/1μm/0.01mm
- Minimum substrate thickness
- 0.3mm
- Minimum measurement area
- Φ11.5mm
- Minimum curvature
- convex 5mm;concave 25mm
Instrument & environment
- Model
- DR360A
- Product code
- DR-CT-DR360A
- Display
- 2.8-inch color display
- Power supply
- 3.7 V lithium battery (3000 mAh)
- Dimensions / weight
- 141×69×27mm / 242g
- Operating environment
- 0℃-60℃, 20%-90%RH
