DONGRU DR280A Dual-Mode Coating Thickness Gauge
Coating Thickness Gauges
DR280A

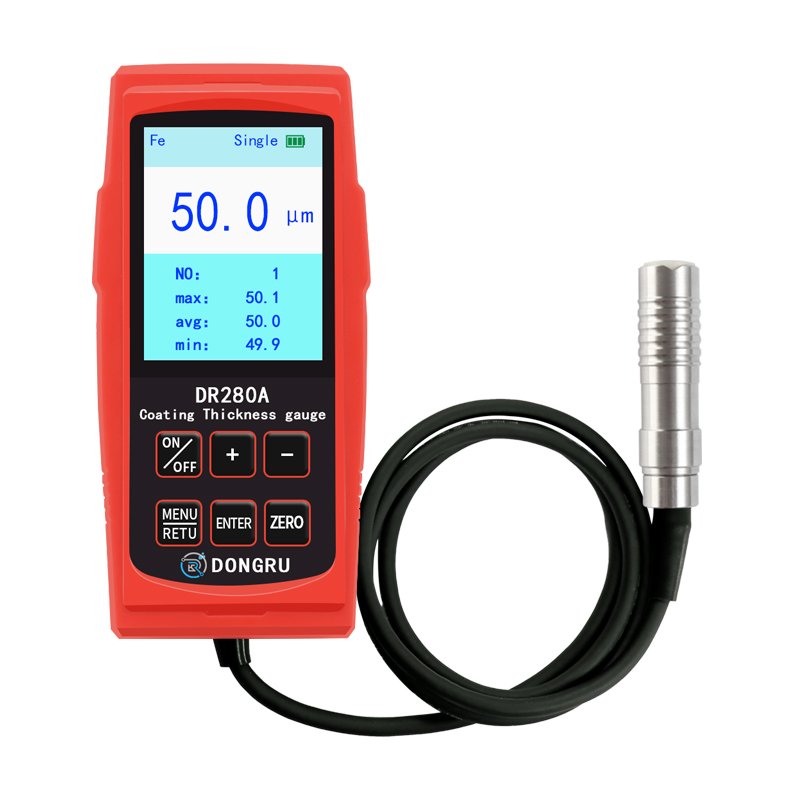

DONGRU DR280A Dual-Mode Coating Thickness Gauge
For routine coating checks across compatible ferrous and non-ferrous metal substrates.
Request technical guidanceCapabilities / DR280A
What the product record supports.
Four confirmed points: material, measurement, readout and power. Full values are in the specification table below.
Measurement
magnetic + eddy current · 0-1250μm · ±(1%-3%)H+1.5μm
Readout
0.1μm/1μm/0.01mm · 2.8-inch color display
Power & body
3.7V lithium battery（2000mAH） · 141×69×27mm / 242g
In practice
Where the DR280A is used
Run routine coating checks across steel and aluminium parts with one gauge. Magnetic induction and eddy current switch automatically, and the colour screen shows the reading where the work happens.
01
Steel and aluminium, one pass
Automatic Fe/NFe
Magnetic induction for steel, eddy current for aluminium. The gauge selects the method, so mixed-material inspection does not need a probe change.
Metal substrates only — not for coatings on plastic, wood or concrete.
02
Routine coating checks
0–1250 μm
Suits day-to-day coating control on painted, galvanised and finished metal parts across a 0–1250 μm range.
Minimum substrate thickness 0.4 mm, with a Φ16 mm minimum measurement area.
03
Rechargeable, colour screen
3.7 V 2000 mAh
1250
μm · measuring range
Reading, group number and max / avg / min show on the 2.8-inch colour screen; the built-in 2000 mAh cell recharges for daily use.
Stated accuracy is ±(1%–3%)H + 1.5 μm; confirm suitability for the coating and substrate.
Automatic Fe/NFe · Φ16 mm minimum area · 2.8-inch colour LCDDR280A · Dual-mode coating thickness gauge
Where it stopsFerrous and non-ferrous metal substrates only. Not for coatings on plastic, concrete or wood, and not for metal wall thickness.
Model / DR280A
Technical specifications
Values come from one shared product record; confirm suitability for your measurement task.
0-1250μm
Measuring range
Confirm your material, measuring method and application before selecting an instrument.
Measurement
- Measurement method
- magnetic + eddy current
- Measuring range
- 0-1250μm
- Compatible substrates
- Steel / non-ferrous metal
- Accuracy
- ±(1%-3%)H+1.5μm
- Resolution
- 0.1μm/1μm/0.01mm
- Minimum substrate thickness
- 0.4mm
- Minimum measurement area
- Φ16mm
- Minimum curvature
- convex 5mm;concave 25mm
Instrument & environment
- Model
- DR280A
- Product code
- DR-CT-DR280A
- Display
- 2.8-inch color display
- Power supply
- 3.7V lithium battery（2000mAH）
- Dimensions / weight
- 141×69×27mm / 242g
- Operating environment
- 0℃-60℃, 20%-90%RH
