Image text
- Gloss meter: surface gloss measuring instrument.
- TEST: measurement; MENU / RETU: menu / return; CAL: calibration; ENTER: confirm.
- Single: single reading; Cont.: continuous measurement; No.: reading number.
Device labels and sample screen readings are reproduced from the original photograph.
Gloss Meters
DR268

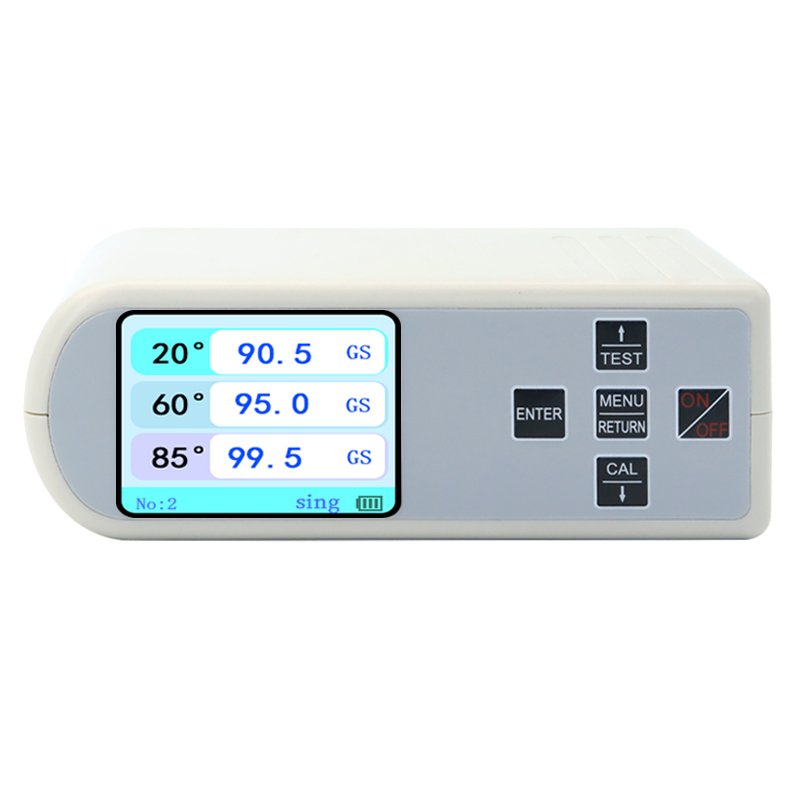

DONGRU DR268 Three-Angle Gloss Meter
For surface-gloss assessment at multiple measurement angles.
Request technical guidanceProduct family / DR268
Where it fits
Multi-angle gloss inspection of finished materials and coatings.
Confirm your material, measuring method and application before selecting an instrument.
Model / DR268
Technical specifications
Values come from one shared product record; confirm suitability for your measurement task.
| Product code | DR-GM-DR268 |
|---|---|
| Measurement method | three angles (20°/60°/85°) |
| Measuring range | 20°:0-2000Gs / 60°:0-1000Gs / 85°:0-120Gs |
| Accuracy | indication error±(0.3+1%) / stability±(0.2+0.2%) |
| Resolution | 0.1 |
| Probe / optics | 62.8×13mm |
| Power supply | 3.7 V lithium battery (3000 mAh) |
| Dimensions / weight | 144 × 55 × 76 mm / 363 g (including battery) |
| Operating environment | 0-40℃, <85% |
DR268
Discuss this model
Tell us your material, expected range and site conditions. We can help check the instrument and probe fit.
