Compatible substrates
Ferrous metal

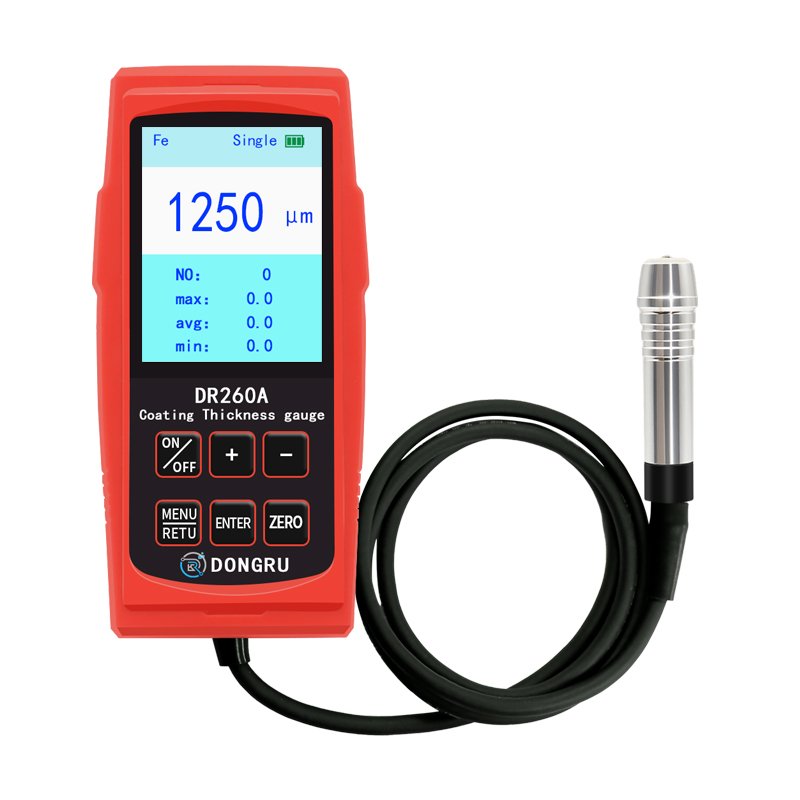

DONGRU DR260A Coating Thickness Gauge
Coating Thickness Gauges
DR260A
DONGRU DR260A Coating Thickness Gauge
For coating-thickness checks during routine industrial finishing and metal quality control.
Request technical guidanceCapabilities / DR260A
What the product record supports.
Four confirmed points: material, measurement, readout and power. Full values are in the specification table below.
Measurement
magnetic · 0-1250μm · ±(1%-3%)H+1.5μm
Readout
0.1μm/1μm/0.01mm · 2.8-inch color display
Power & body
3.7V lithium battery（2000mAH） · 141×69×27mm / 242g
In practice
Where the DR260A is used
Everyday coating checks on painted and galvanised steel parts, with readings that convert to coating mass for the job record. The magnetic probe covers 0–1250 μm on a small Φ11.5 mm spot.
01
Steel coatings, everyday checks
Magnetic induction
Handle routine coating control in industrial finishing and metal fabrication on ferrous parts, across a 0–1250 μm range.
Ferrous substrates only — not for aluminium or other non-ferrous metals.
02
Galvanising in g/m²
Thickness to coating mass
Galvanised readings convert to coating mass per unit area, so an inspection can be recorded in the units the specification uses.
Coating mass is derived from measured thickness; confirm the conversion basis.
03
Compact, rechargeable
2000 mAh · Φ11.5 mm
1250
μm · measuring range
A Φ11.5 mm measurement spot suits small formed parts, and the 2000 mAh cell recharges between inspection rounds.
Stated accuracy is ±(1%–3%)H + 1.5 μm; at curved parts the radius must be at least 5 mm convex or 25 mm concave.
Magnetic induction · 0–1250 μm · 2.8-inch colour LCDDR260A · Coating thickness gauge
Where it stopsFerrous metal substrates only. Not for non-ferrous metals, and not for coatings on plastic or concrete. Coating mass is a conversion from measured thickness, not a direct reading.
Model / DR260A
Technical specifications
Values come from one shared product record; confirm suitability for your measurement task.
0-1250μm
Measuring range
Confirm your material, measuring method and application before selecting an instrument.
Measurement
- Measurement method
- magnetic
- Measuring range
- 0-1250μm
- Compatible substrates
- Ferrous metal
- Accuracy
- ±(1%-3%)H+1.5μm
- Resolution
- 0.1μm/1μm/0.01mm
- Minimum substrate thickness
- 0.4mm
- Minimum measurement area
- Φ11.5mm
- Minimum curvature
- convex 5mm;concave 25mm
Instrument & environment
- Model
- DR260A
- Product code
- DR-CT-DR260A
- Display
- 2.8-inch color display
- Power supply
- 3.7V lithium battery（2000mAH）
- Dimensions / weight
- 141×69×27mm / 242g
- Operating environment
- 0℃-60℃, 20%-90%RH
DR260A
Discuss this model
Tell us your material, expected range and site conditions. We can help check the instrument and probe fit.
