DONGRU DR130 Automotive Coating Thickness Gauge
Coating Thickness Gauges
DR130

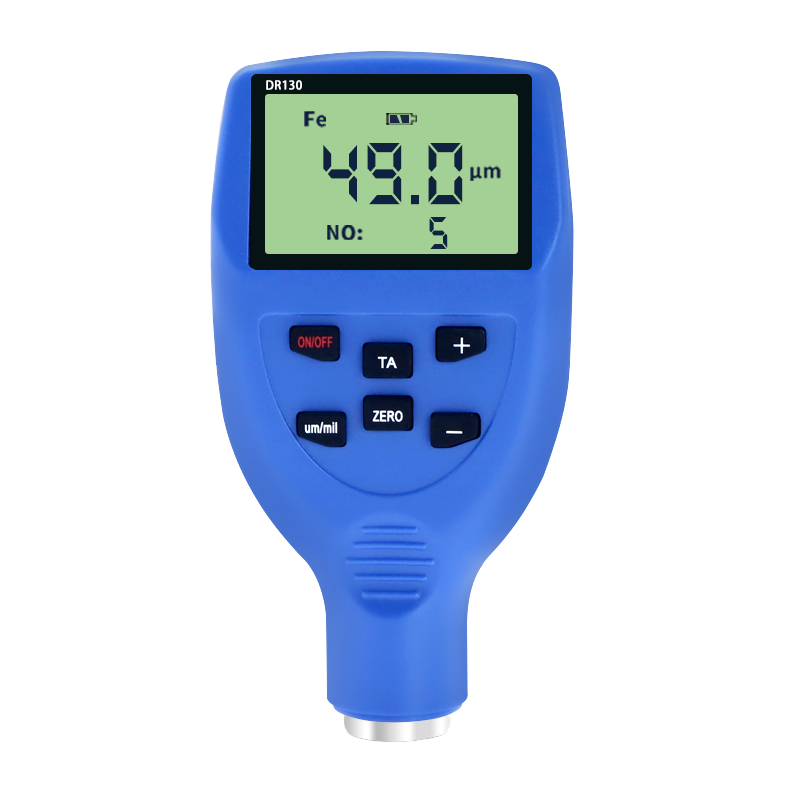

DONGRU DR130 Automotive Coating Thickness Gauge
For paint-thickness checks on compatible metal vehicle panels during inspection and refinishing work.
Request technical guidanceCapabilities / DR130
What the product record supports.
Four confirmed points: material, measurement, readout and power. Full values are in the specification table below.
Measurement
magnetic + eddy current · 0-1500μm · ±(3%H+1.5μm)
Readout
0.1μm/1μm · 2.3-inch large backlit LCD
Power & body
4.5VDC(three AAA alkaline batteries) · 126×64×28mm / 106g（excluding battery）
In practice
Where the DR130 is used
Check coating thickness on painted steel and aluminium bodywork, keep the readings in groups and compare them panel by panel. The DR130 runs on three AAA batteries and stores 2000 readings on the device.
01
Steel and aluminium panels
Automatic Fe/NFe
Magnetic induction for steel, eddy current for aluminium. The integrated alloy probe switches method automatically, so one gauge covers both panel types.
Minimum substrate thickness 0.4 mm; on curved areas the radius must be at least 5 mm convex or 25 mm concave.
02
Before and after refinishing
0–1500 μm
Read the coating build before and after paintwork so the thickness is recorded with the job, not judged by appearance alone.
Stated accuracy is ±(3% of H + 1.5 μm); readings depend on substrate, surface and measurement conditions.
03
Grouped records
3 × AAA, not included
2000
readings · 10 groups
Minimum, maximum and average values are reviewed directly on the instrument.
Readings stay on the device; PC export and a traceable calibration certificate are not confirmed for this kit.
Automatic Fe/NFe · Integrated alloy probe · 2.3-inch backlit LCDDR130 · Coating thickness gauge
Where it stopsNot for metal wall thickness, and not for coatings on plastic, wood or carbon fibre. Batteries are not included and the instrument is not rechargeable.
Model / DR130
Technical specifications
Values come from one shared product record; confirm suitability for your measurement task.
0-1500μm
Measuring range
Confirm your material, measuring method and application before selecting an instrument.
Measurement
- Measurement method
- magnetic + eddy current
- Measuring range
- 0-1500μm
- Compatible substrates
- Steel / non-ferrous metal
- Accuracy
- ±(3%H+1.5μm)
- Resolution
- 0.1μm/1μm
- Minimum substrate thickness
- 0.4mm
- Minimum measurement area
- 18×15mm
- Minimum curvature
- convex 5mm;concave 25mm
Instrument & environment
- Model
- DR130
- Product code
- DR-CT-DR130
- Display
- 2.3-inch large backlit LCD
- Power supply
- 4.5VDC(three AAA alkaline batteries)
- Dimensions / weight
- 126×64×28mm / 106g（excluding battery）
- Operating environment
- 0℃-60℃, 20%-90%RH
