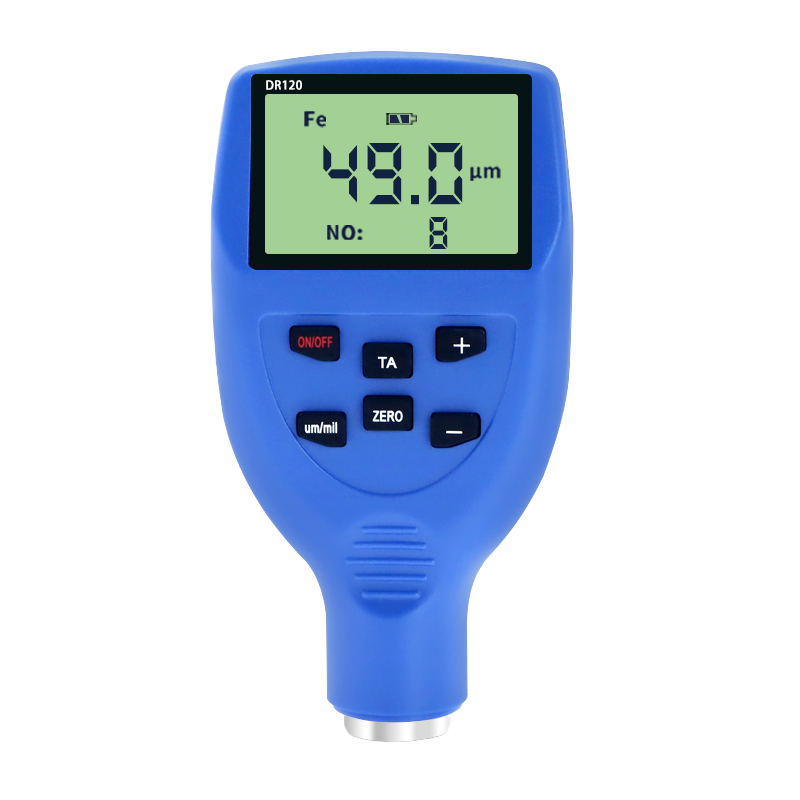

DONGRU DR120 Coating Thickness Gauge

Name: DONGRU DR120 Coating Thickness Gauge
Brand: DONGRU
SKU: DR-CT-DR120

For coating-thickness checks on compatible ferrous metal substrates.

Capabilities / DR120

What the product record supports.

Four confirmed points: material, measurement, readout and power. Full values are in the specification table below.

Ferrous metal

magnetic · 0-1500μm · ±(3%H+1.5μm)

0.1μm/1μm · 2.3-inch large backlit LCD

4.5VDC(three AAA alkaline batteries) · 126×64×28mm / 106g（excluding battery）

In practice

A one-piece magnetic gauge for coating checks on steel and iron parts: no cable, 1500 μm of range and 106 g in hand.

Magnetic induction

A single magnetic mode for coatings on ferrous parts, from 0 to 1500 μm, with no range switching to think about.

Ferrous substrates only — not for aluminium or other non-ferrous metals.

Integrated probe

The probe sits in the housing, so the gauge goes straight onto the part; an 18 × 15 mm spot covers most surfaces.

Minimum substrate thickness 0.4 mm.

106 g · 3 × AAA

1500

μm · measuring range

106 g in hand with a backlit 2.3-inch display, running on three AAA cells for long inspection rounds.

Stated accuracy is ±(3% of H + 1.5 μm); at curved parts the radius must be at least 5 mm convex or 25 mm concave.

Magnetic induction · 0–1500 μm · 2.3-inch backlit LCDDR120 · Coating thickness gauge

Where it stopsFerrous metal substrates only. Not for aluminium or other non-ferrous metals, and not for metal wall thickness.

Model / DR120

Values come from one shared product record; confirm suitability for your measurement task.

0-1500μm

Measuring range

Confirm your material, measuring method and application before selecting an instrument.

DR120

Tell us your material, expected range and site conditions. We can help check the instrument and probe fit.
